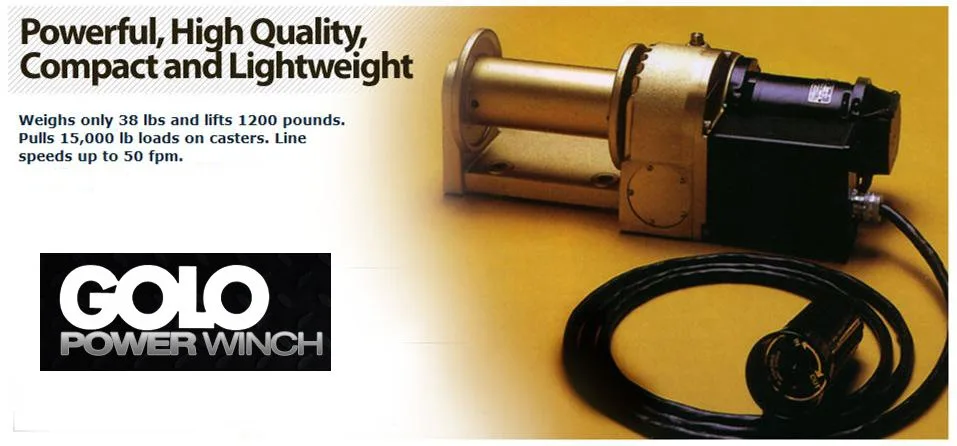

Turn major jobs into minor chores with easy to operate, compact, lightweight, electric winches.

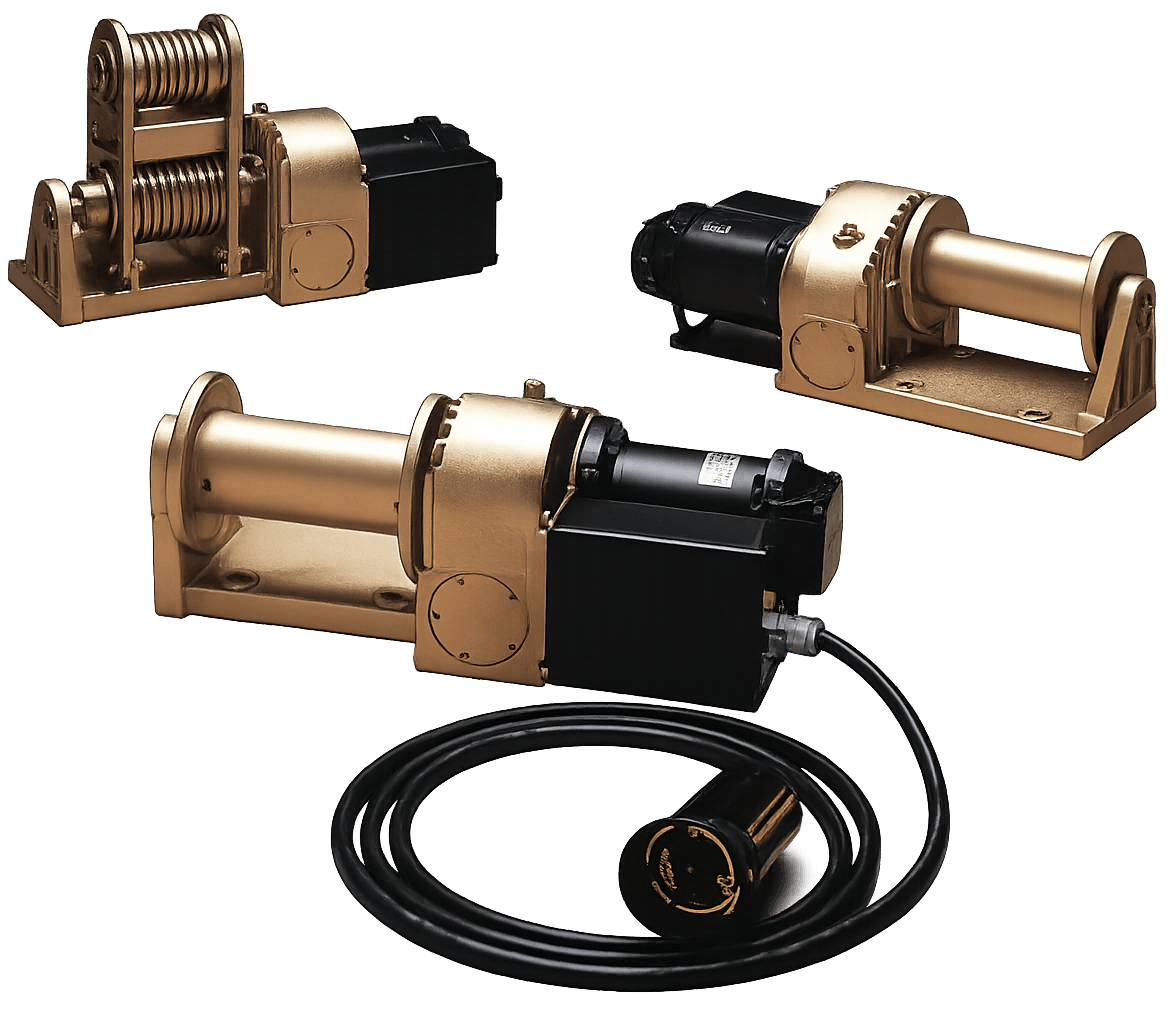

Common advantages to both single and double drum:

  • Hi-Strength Aluminum Gear Housing –
    Lightweight-Precision machined to exact specifications.
  • Sealed Gears –
    Run in oil bath for constant lubrication to help prevent “friction wear” and heat rise.
  • Lightweight Intermittent Reversible Motor –
    High speed AC 1.3HP open universal motor with aluminum body. 115 v-15 amps, 230 v- 8 amps.
  • Simple Field Repair –
    Quick disconnect of switch connections and of main box assemblies.
  • Double Reduction Worm Gearing – Aluminum bronze worm gears with hardened and ground steel worms. Gear ratios: 533- 1 and 267- 1.
  • Switch Box Materials –
    Hi-impact plastic made from permanent mold equipment.
  • Ball and Roller Bearings – Used throughout for smooth performance.
  • Easy Mounting – Mount horizontally, vertically, or inversely with the 4-mounting holes below drum. ( All positions except wall mount with oil filler plug in “up” position.)

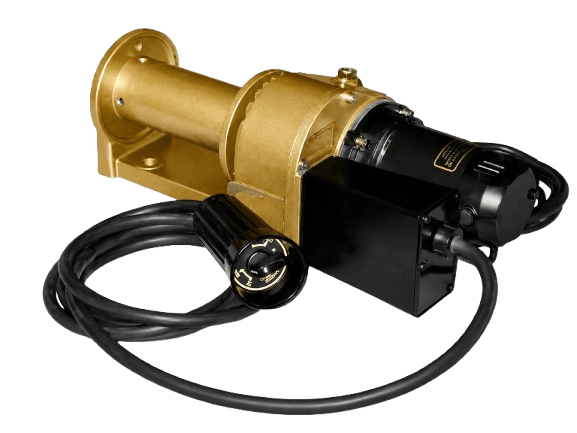

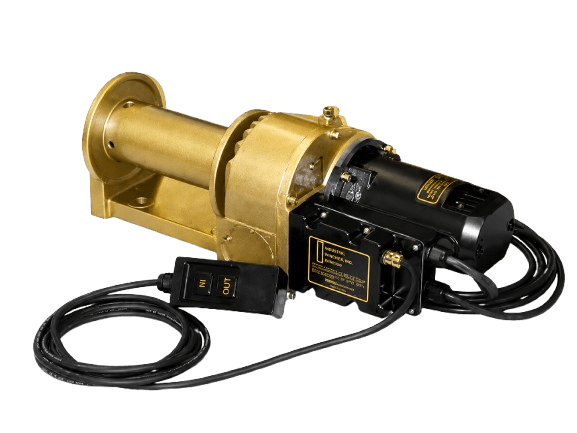

  • Single Selector Switch Controls (AC Only ) – Momentary or Maintained available

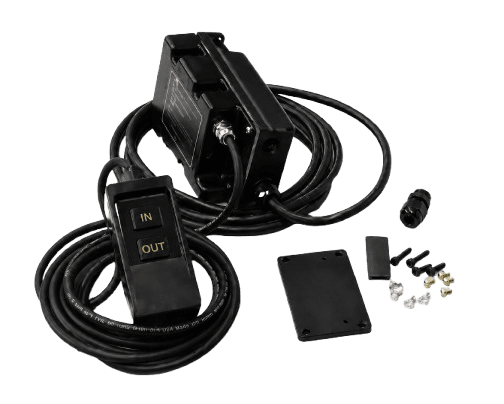

  • Disconnect – Available as option on remote controls.

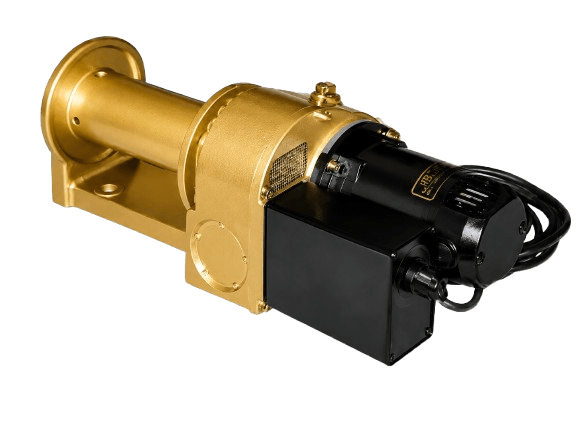

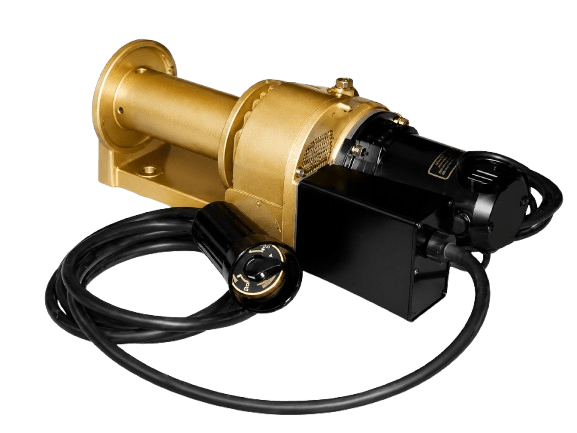

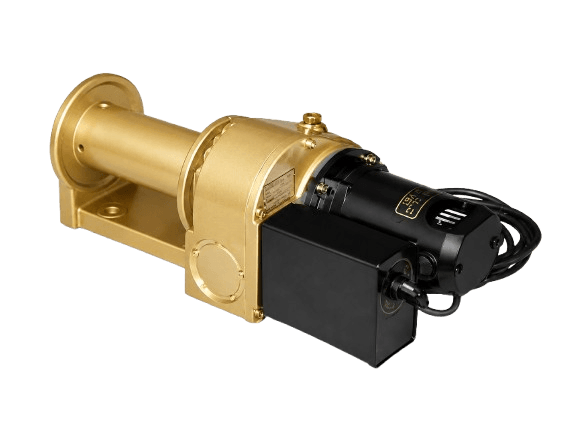

Single Drum Winch Features:

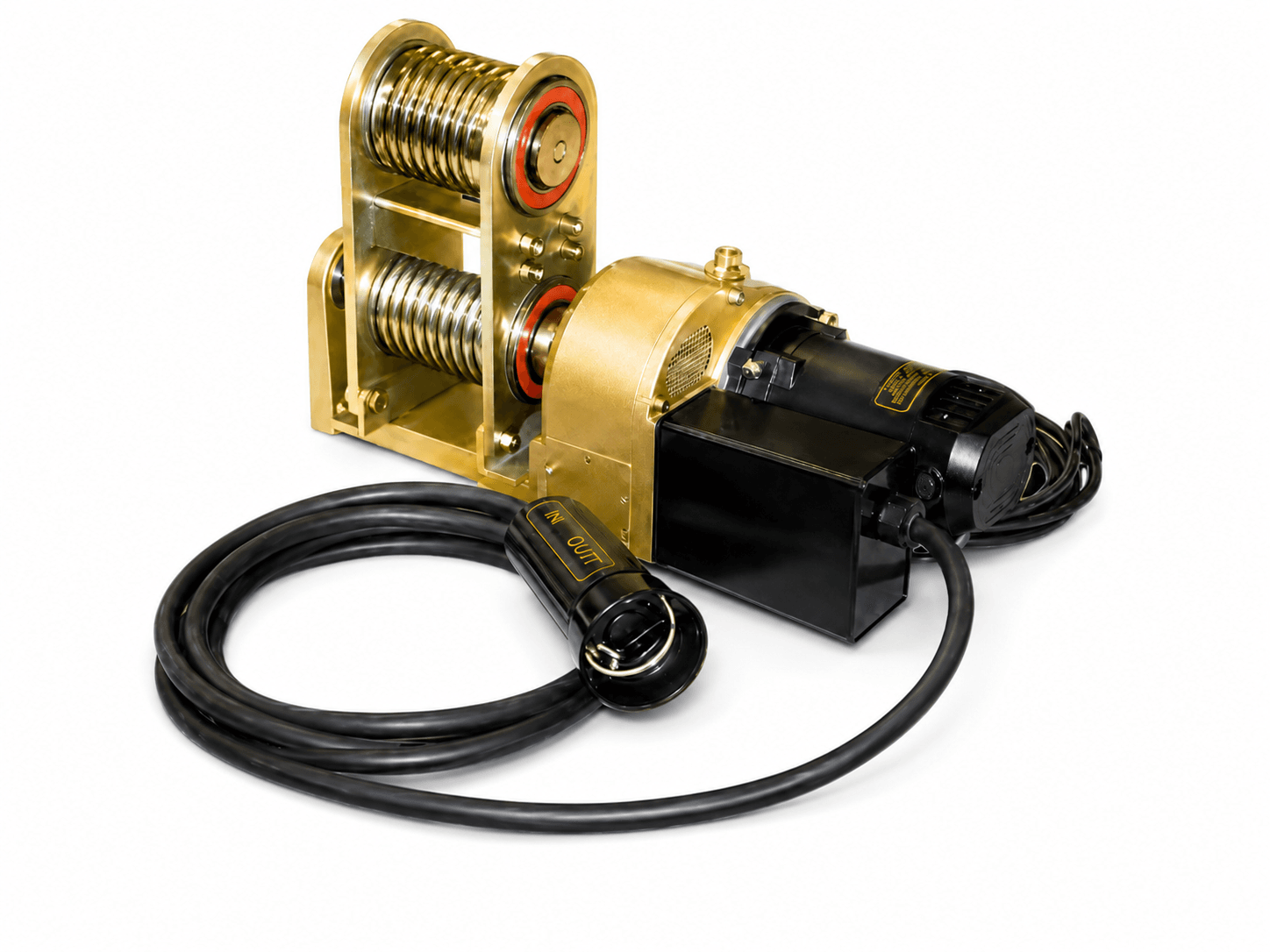

Double Drum Winch Features:

  • Cable Lock –
    Lets you attach the cable to drum in seconds.
  • Specially Grooved Steel Drums –
    Assist in proper alignment for continuous loop cable.
  • Anti-Stacking Drum –
    Helps eliminate cable “stacking” that can reduce lifting / pulling power.
  • Additional Bearings –
    Four large load carrying bearings at drum section.

Patented trigger-duodynamic™ electrical breaking in conjunction with reversible universal motor plus double reduction self-locking worm gearing gives the operator safer control.
